27.5" E-MTB mountain bike BOSCH Performance Line CX 625 Wh MAVERIX 10 x GANG SHIMANO DEORE RD-M5120 SGS

27.5" e-bike MTB BOSCH Performance Line CX 625 Wh MAVERIX 10-speed SHIMANO DEORE RD-M5120 SGS

Powerful Bosch Performance Line CX motor

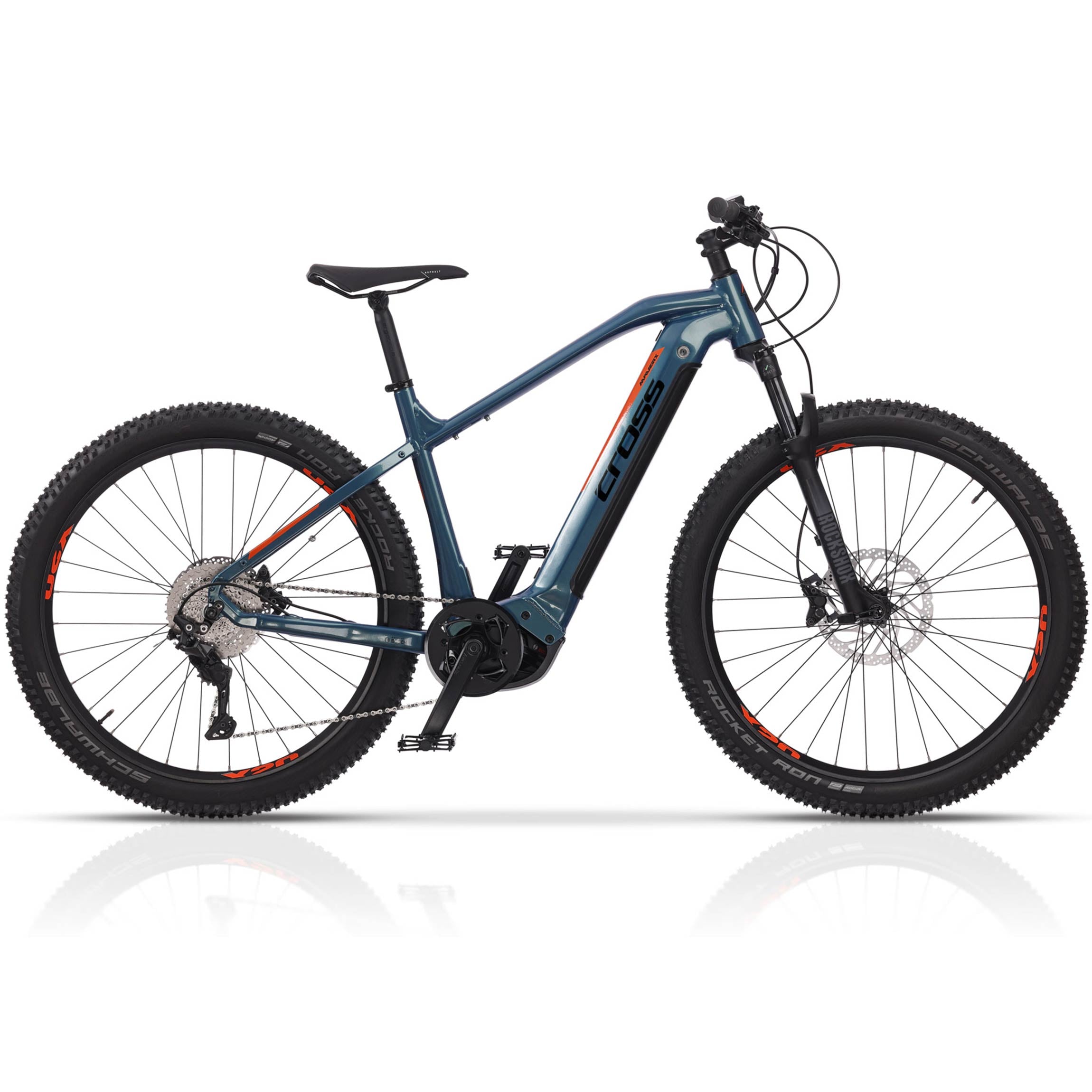

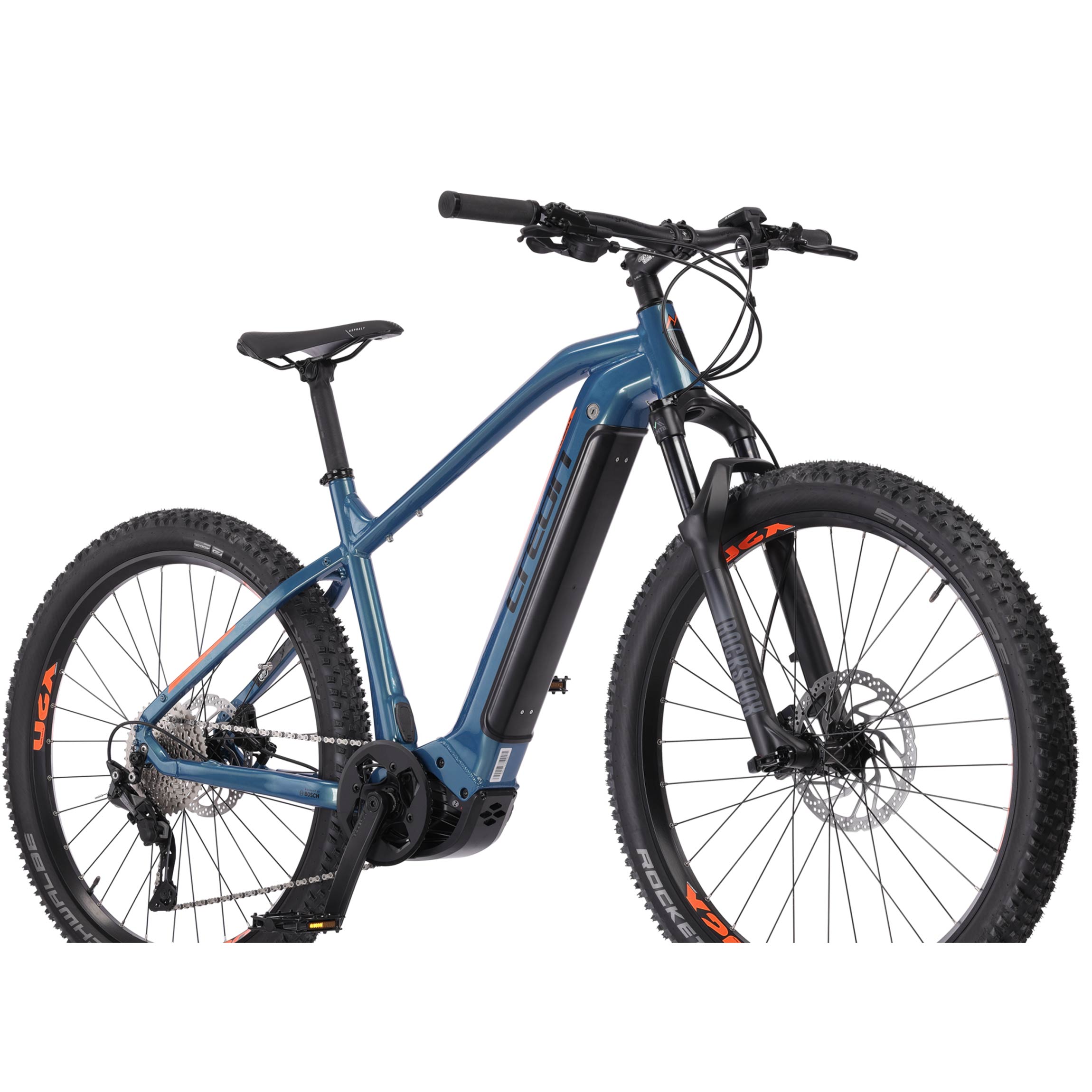

The MAVERIX 27.5-inch e-mountain bike was developed for demanding tours and sporty riders. The powerful Bosch Performance Line CX Gen4 motor delivers up to 85 Nm torque and provides strong support on trails, steep climbs, and long off-road routes.

Powerful 625 Wh Bosch battery

The integrated Bosch PowerTube 625 Wh battery enables a long range and is elegantly integrated into the frame. The Bosch Purion display lets you keep track of speed, support level, and battery status at all times.

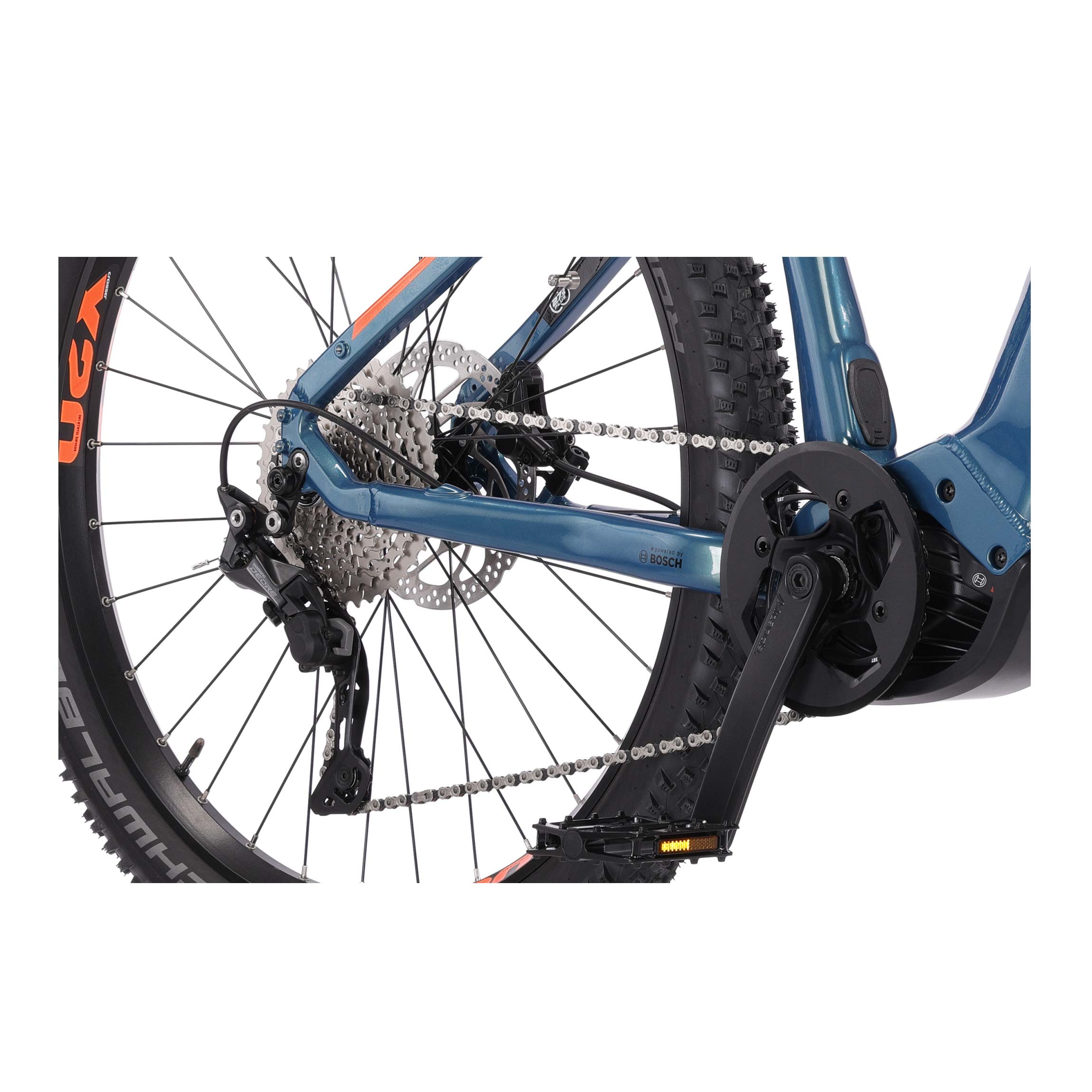

Shimano Deore 10-speed drivetrain

The reliable Shimano Deore 10-speed drivetrain with RD-M5120 SGS derailleur ensures precise and fast gear changes. The 11–46T cassette offers a wide gear range for efficient riding on terrain and longer distances.

Off-road tires and suspension fork

The Schwalbe Rocket Ron 27.5 x 2.80 tires offer excellent traction and stability on trails and unpaved paths. The suspension fork with 100 mm travel absorbs bumps and provides more control off-road.

Shimano 4-piston disc brakes

Hydraulic Shimano Deore 4-piston disc brakes with large rotors (203 mm front / 180 mm rear) guarantee strong and reliable braking performance even on demanding descents.

Comfort and high-quality components

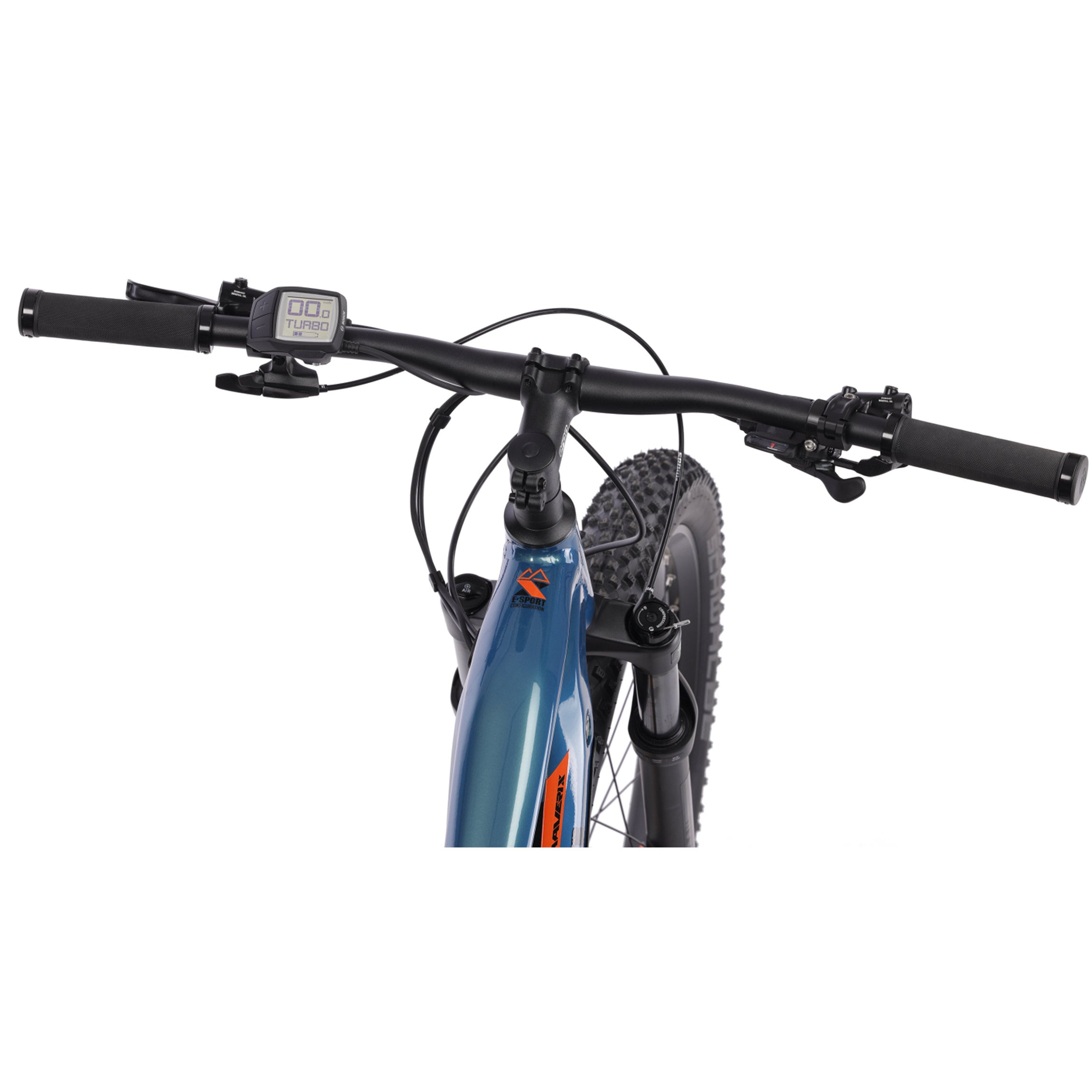

The ergonomic cockpit with Humpert handlebars and stem, comfortable Herrmans grips, and Selle Royal saddle ensures high riding comfort – even on longer tours.

---

Technical specifications

• Motor: Bosch Performance Line CX Gen4 – 85 Nm
• Battery: Bosch PowerTube 625 Wh
• Gears: Shimano Deore 10-speed
• Brakes: Shimano Deore hydraulic, 4-piston
• Tires: Schwalbe Rocket Ron 27.5 x 2.80
• Weight: approx. 21.4 kg
• Maximum total weight: 130 kg

All Airtracks e-bikes with Bosch or Shimano motors are equipped with removable and lockable batteries.
These offer more comfort and security than fixed batteries, as they can be easily removed from the bike, charged separately, and protected against theft.

This bike is delivered 98% assembled. Only the handlebars and pedals need to be fixed. The final ride-ready assembly must be carried out by a qualified person.

MOTOR	Shimano EP8 (DU-EP800) Mid-Drive Motor
BATTERY	Shimano BT-E8010 Battery, 504 Wh
DISPLAY	Shimano SC-EM800 Display
CONTROL UNIT	Shimano SW-EM800L Control Unit
CHARGER	Shimano EC-E6002 Charger, 2 A
FRAME	Shine Wheel e-MTB Aluminium Frame 27.5+
COLOR	Warm Anthracite Metallic, Glossy
FORK	RockShox Recon RL Fork, 120 mm Travel
LOCKOUT	RockShox OneLoc Sprint Remote Lockout
HEADSET	VP-J313AE, Tapered 1 1/8" – 1.5"
CRANKSET	Shimano FC-M8150, 170 mm
CHAINRING	Shimano SM-CRE80
CHAIN GUIDE	Shimano SM-CDE80
CHAIN	KMC e11S
REAR DERAILLEUR	Shimano Deore XT, 11-Speed
FRONT DERAILLEUR	Not Available
SHIFTER	Shimano SLX
CASSETTE	Shimano SLX, 11–46T
SHIFT/BRAKE CABLES	Jagwire
FRONT BRAKE	Shimano MT501 Hydraulic Disc Brake
REAR BRAKE	Shimano MT501 Hydraulic Disc Brake
FRONT BRAKE ROTOR	Shimano RT64, 203 mm
REAR BRAKE ROTOR	Shimano EM600, 180 mm
FRONT WHEEL	29 in
REAR WHEEL	27.5+ in
FRONT RIM	RODI TRYP30, 622 × 30 mm
REAR RIM	RODI TRYP35, 584 × 35 mm
FRONT HUB	Shimano MT400, 15 mm Thru-Axle
REAR HUB	Shimano MT400, 12 mm Thru-Axle
REAR THRU-AXLE	M12 × 1.5
SPOKES	Black Stainless Steel
FRONT TIRE	Schwalbe Nobby Nic Evolution 60-622
REAR TIRE	Schwalbe Nobby Nic Evolution 65-584
INNER TUBES	Schwalbe SV19F Freeride
RIM TAPE	Herrmans
HANDLEBAR	Humpert Low Riser, 31.8 mm
STEM	Humpert Piranha, 50 mm
GRIPS	Herrmans Diamond DD28
SADDLE	Selle Royal Shadow
SEATPOST	Humpert Skalar 6, Ø 31.6 mm
SEAT CLAMP	Promax MX27
CHAINSTAY PROTECTOR	VLF-003-3 Chainstay Protector
PEDALS	Not Included
KICKSTAND	Not Installed
REFLECTORS	Not Installed
BATTERY LOCK	ABUS Battery Lock
SPEED SENSOR	Shimano EW-SS301
WIRING	Shimano EW-SD300
WEIGHT	26.4 kg

Frame size 44 cm	Height 155-165 cm
Frame size 47 cm	Height 165-175 cm
Frame size 52 cm	Height 175-185 cm
Frame size 56 cm	Height 185-195 cm
