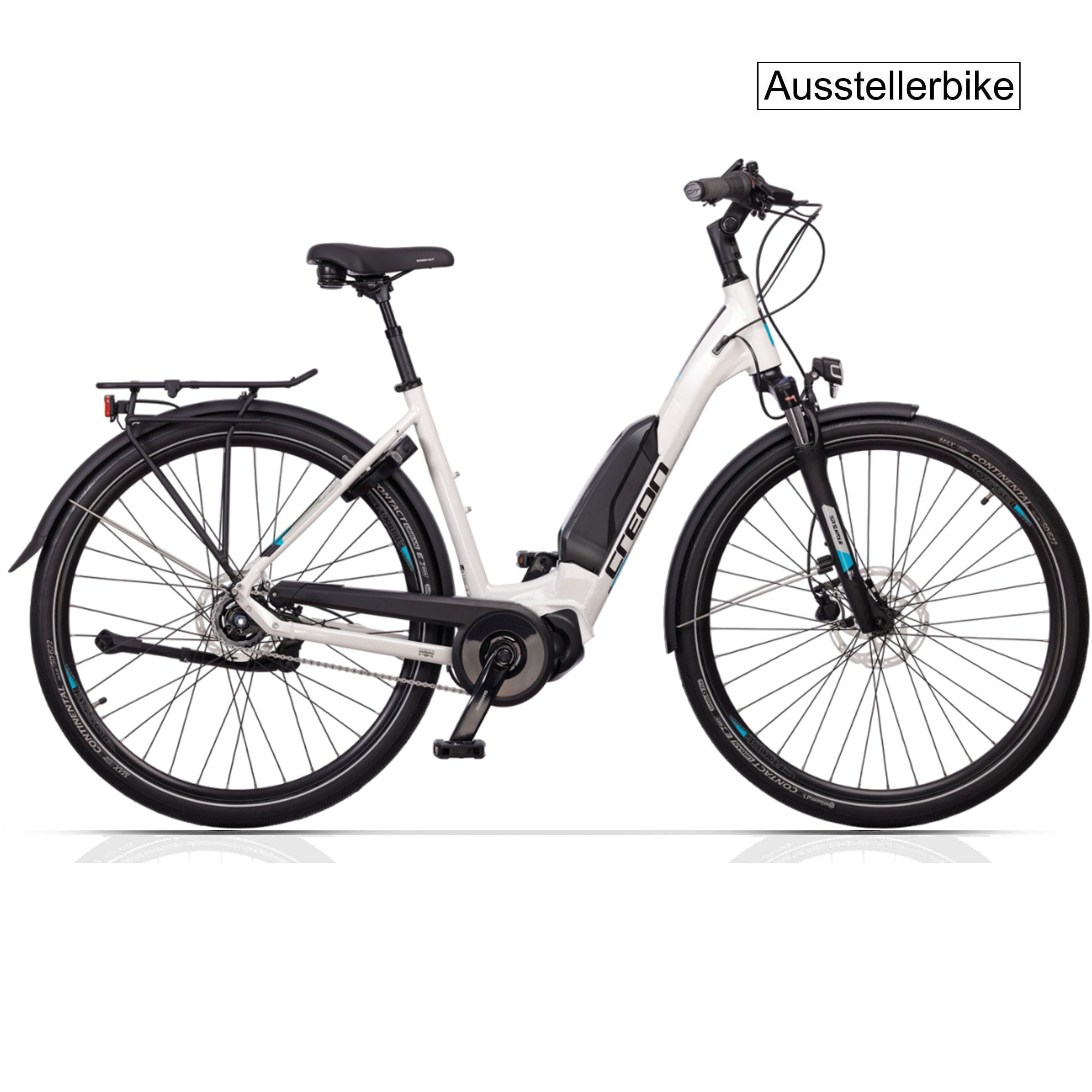

28" E-bike City Bicycle LS WAVE SR3 CR SHIMANO STEPS E-5000 418Wh 5-speed SHIMANO NEXUS INTER - B-grade
28" E-bike City Bicycle LS WAVE SR3 CR SHIMANO STEPS E-5000 418Wh 5-speed SHIMANO NEXUS INTER - B-grade
55 cm
Holzhauser Str. 180, Gebäude 45
Airtracks Sport, Holzhauser Straße 180 Gebäude 45
vertrieb@airtracks.de
13509 Berlin
Germany

Shipping: 5 - 7 working days
Free Shipping & Returns
0% PayPal installment payment
30-day return policy
B-grade: Display bike – 88 km | No cosmetic defects
Please NOTE that this item is explicitly offered as a so-called "display bike." A "display bike" is characterized by the fact that the corresponding bikes and components show signs of use or other cosmetic defects such as scratches, paint damage, or color deviations, but have been inspected and are in technically flawless, functional condition.
Display bikes – including bikes from our stores that were used for test rides • Checked by our professionals – technically flawless condition • Display bikes come with a 2-year warranty.
28 INCH CITY BIKE LOW STEP WAVE E-BIKE SR3 SHIMANO STEPS E5000 BT-E8014 / 418WH
The LOW STEP WAVE SR3 is an elegant and comfortable e-bike, specially designed for urban use. With its low step-through height, curved frame, and high-quality components, it offers an ideal combination of style and functionality.
The e-bike is powered by a reliable SHIMANO STEPS mid-motor "E5000" with a nominal continuous power of 250 W. The 418 Wh battery enables efficient assistance during the ride and offers a balanced range for city traffic and short tours.
The 5-speed derailleur specially developed for e-bikes, SHIMANO NEXUS INTER, ensures simple and low-maintenance gear shifting, which is particularly advantageous in urban environments. The gears are precisely tuned to allow effortless movement and adaptation to different speeds.
The suspension fork of the SR3 Wave comes from SUNTOUR and is called "SF19-NEX E25 NLO". This fork is adjustable and offers a comfortable ride with 63 mm of travel. The lockout mechanism allows the suspension to be blocked when needed to increase efficiency on smooth roads.
The brakes of the bicycle are TEKTRO "HD-T280" hydraulic disc brakes with 180 mm rotors in Center-Lock design, and coaster brake. These brakes provide reliable and controllable braking performance, which is especially important in urban traffic situations. They ensure safety and control, even during unexpected braking maneuvers.
The SR3 Wave is an e-bike that impresses not only with its performance but also with its stylish design and carefully selected components. With this bike, city riders experience a pleasant and comfortable ride that perfectly adapts to the demands of urban life.
All Airtracks e-bikes with Bosch or Shimano motors are equipped with removable and lockable batteries.
These offer more comfort and security than fixed batteries, as they can be easily removed from the bike, charged separately, and protected against theft.
This bike is delivered 98% pre-assembled. Only the handlebar and pedals need to be fixed. The final assembly ready to ride must be carried out by a qualified person.
| MOTOR | SHIMANO MID-MOTOR 'E5000', 250 W NOMINAL CONTINUOUS OUTPUT |
| BATTERY | SHIMANO STEPS LITHIUM-ION WITH BMS, 36 V, 11.6 AH, 418 WH |
| DISPLAY | SHIMANO STEPS 'SC-E6100' LCD, BLUETOOTH, REMOTE CONTROL; LCD SIZE 2.7 INCH |
| CHARGER | SHIMANO STEPS EC-E6002 - BATTERY CHARGER - 240 V AC, 50-60 HZ |
| FRAME | ALUMINIUM SEMI-INTEGRATED STEPS, LOW STEP WAVE, INTERNAL CABLE ROUTING, 700C |
| FORK | SUNTOUR 'SF19-NEX E25 NLO', ADJUSTABLE, LOCKOUT, 63MM |
| HEADSET | AHEAD, SEMI-INTEGRATED 1 1/8" |
| CRANKSET | SHIMANO STEPS 'FC-E5010', 175MM, BLACK |
| PEDALS | MARWI SP-827 * BLACK |
| CHAIN | KMC 'E1 EPT' |
| GEAR HUB | SHIMANO 5-SPEED NEXUS INTER 5E, COASTER BRAKE |
| SHIFTER | SHIMANO 'NEXUS', 5-SPEED |
| BRAKE LEVERS | TEKTRO 'HD-T280' HYDRAULIC DISC BRAKE |
| FRONT BRAKE | TEKTRO 'HD-T280' HYDRAULIC DISC BRAKE WITH 180MM ROTOR, CENTER-LOCK |
| REAR BRAKE | TEKTRO 'HD-T280' HYDRAULIC DISC BRAKE WITH 180MM ROTOR, CENTER-LOCK, COASTER BRAKE |
| FRONT HUB | SHIMANO 'HB-TX505', 36H, QR, DISC, CENTER LOCK |
| RIMS | X-6, ALUMINUM, DOUBLE WALL |
| TIRES | CONTINENTAL CONTACT URBAN BLACK/BLACK REFLEX 50-622 |
| SADDLE | SELLE ROYAL ESSENZA ITALY DURANGO COVER |
| SEATPOST | ERGOTEC 'SP10', SUSPENSION, Ø 27.2 MM, ALU |
| HANDLEBAR | ERGOTEC 'LADY TOWN', 620 MM, Ø 31.8 MM, BLACK |
| STEM | ERGOTEC 'SEPIA 50', Ø31.8 MM, ADJUSTABLE, BLACK, 110MM |
| GRIPS | TOUR WING ECO, 610 MM WIDTH |
| FENDERS | CURANA 'APOLLO', 60MM, BLACK MATT |
| RACK | MIK-ALU RACK 'TA7653A' MIK-SYSTEM |
| FRONT LIGHT | TRENTMANN DLUX80 |
| REAR LIGHT | TRENTMANN CTL 335 E-STOP |
| FRAME LOCK | ABUS STEPS |
| KICKSTAND | URSUS WAVE, CHAINSTAY MOUNT, ADJUSTABLE LENGTH |
| MAXIMUM LOAD | 130 KG |
| Frame size 45 cm | Height 165-175 cm |
| Frame size 50 cm | Height 175-185 cm |
| Frame size 55 cm | Height 185-195 cm |
| Motor | SHIMANO mid-motor "E5000", 250 W nominal continuous power |
| Battery | SHIMANO STEPS lithium-ion with BMS, 36 V, 11.6 Ah, 418 Wh |
| Onboard computer | SHIMANO STEPS "SC-E6100" LCD, Bluetooth, remote control; LCD size 2.7 inches |
| Charger | SHIMANO STEPS EC-E6002 - Battery charger - 240 V AC, 50 - 60 Hz |
| Frame | Aluminum semi-integrated steps, low step wave, internal cable routing, 700C |
| Fork | SUNTOUR "SF19-NEX E25 NLO", adjustable, lockout, 63mm |
| Headset | Ahead, semi-integrated 1 1/8" |
| Crank | SHIMANO STEPS "FC-E5010", 175mm, black |
| Pedals | MARWI SP-827 * BLACK |
| Chain | KMC "E1 EPT" |
| Gear hub | SHIMANO 5 SPEED NEXUS INTER 5E, COASTER BRAKE |
| Shift lever | SHIMANO "Nexus", 5-speed |
| Brake lever | TEKTRO "HD-T280" hydraulic disc brake |
| Front brake | TEKTRO "HD-T280" hydraulic disc brake with 180mm brake disc, Center-Lock, |
| Rear brake | TEKTRO "HD-T280" hydraulic disc brake with 180mm brake disc, Center-Lock, coaster brake |
| Front hub | SHIMANO "HB-TX505", 36 holes, QR, disc, Center Lock |
| Rims | X-6, aluminum, hollow chamber |
| Tires | CONTINENTAL CONTACT Urban black/black reflex 50-622 |
| Saddle | SELLE RYAL ESSENZA ITALY DURANGO COVER |
| Seatpost | ERGOTEC "SP10", sprung, Ø 27.2 mm, aluminum |
| Handlebar | ERGOTEC "Lady Town", 620 mm, Ø 31.8 mm, black |
| Stem | ERGOTEC "Sepia 50", Ø31.8 mm, adjustable, black, 110mm |
| Handlebar grips | Tour Wing Eco", 610 mm wide |
| Fenders | CURANA "Apollo", 60mm, matte black |
| Luggage rack | MIK-ALU-RACK "TA7653A" MIK system |
| Front light | TRENTMANN DLUX80 |
| Rear light | TRENTMANN CTL 335 E-Stop |
| Frame lock | ABUS STEPS |
| Kickstand | Ursus Wave, chainstay mount, length adjustable |
| ZZGL | 130Kg |
